ECO-SPORT ROLL
ECO-WELLNESS
Recycled rubber flooring and accessories for the sports industry.
Elastic underlayment in a roll
Recycled rubber underlayment for track and field and sports flooring
ECO-SPORT ROLL is a roll of recycled SBR rubber, sourced primarily from end-of-life tyres, designed for use as an elastic underlayment in multilayer systems for sports surfaces. Available in thicknesses ranging from 2 to 10 mm, it is used in track and field facilities, indoor and outdoor gyms, sports arenas, and fitness centers.
Thicknesses
2–10 mm
System
Underlayment for Sports Surfaces
What is it?
A roll of recycled SBR rubber used as an elastic base layer in sports flooring systems.
Where it is used
Track and field tracks, indoor and outdoor gyms, sports arenas, and fitness centers.
How to Integrate It
In the multi-layer system, it is combined with subsequent layers of pore filler, polyurethane, and surface finish.
1500 mm
Standard roll width.
2–10 mm
. Available thicknesses.
Indoor/outdoor
For sports flooring systems.
Black
. Documented standard color.
REMADE®
Available upon request, 92% recycled content.
01 / Product
The elastic base of the sports flooring system
ECO-SPORT ROLL is made from recycled SBR rubber granules, derived primarily from ELTs and bound with polyurethane resin. The product is supplied in rolls and used as a base layer in the construction of continuous sports flooring.
Multilayer System
How the sandwich system works

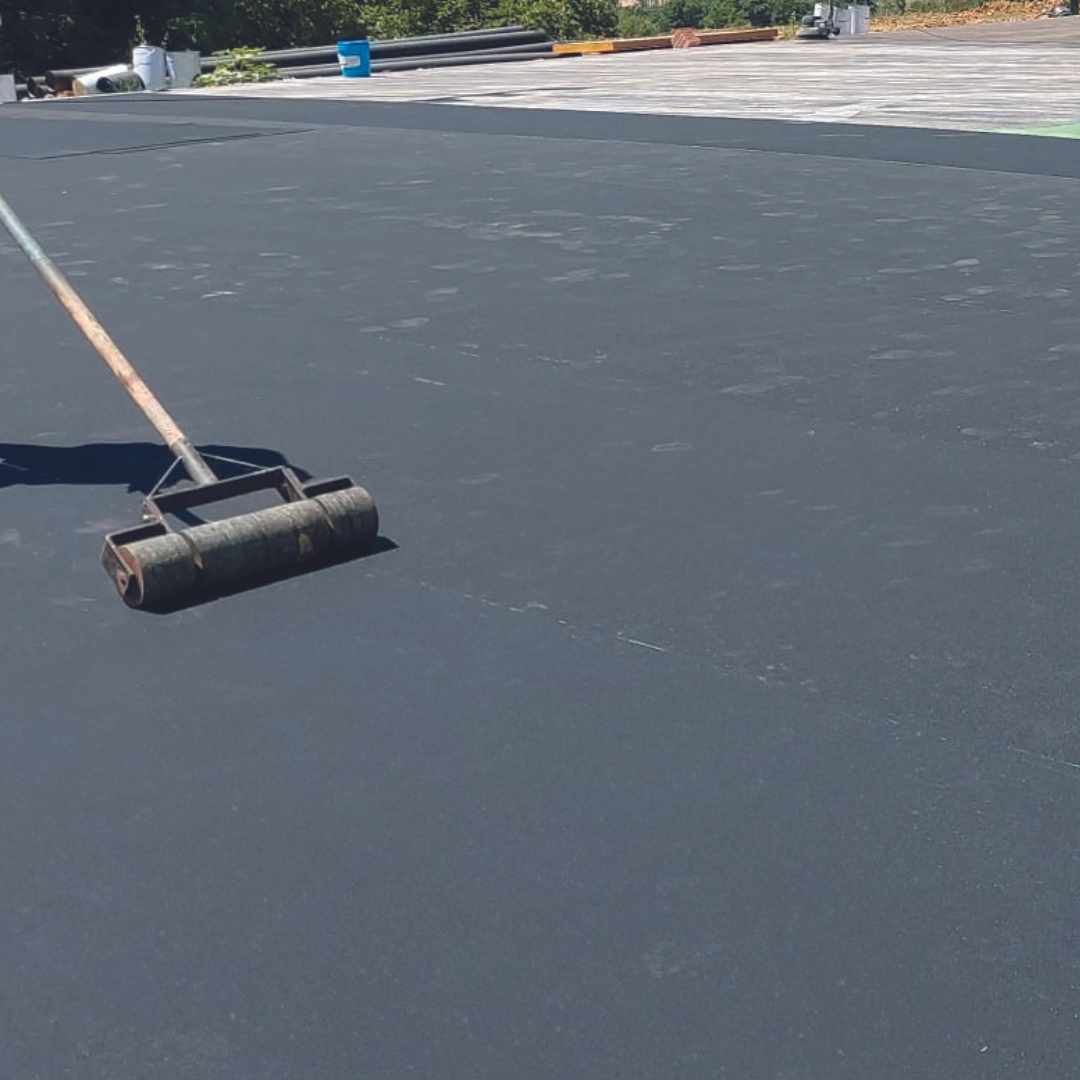

ECO-SPORT ROLL is installed on the subbase and then integrated into the construction process for the sports surface. The documented stratigraphy includes successive layers of pore-filler, polyurethane, and surface finish. The roll thus constitutes the system’s elastic subbase, not the final sports surface.
02 / Applications
A subfloor for indoor and outdoor sports surfaces
Documented applications include indoor and outdoor track and field facilities, gyms, sports arenas, and fitness centers. In all these applications, ECO-SPORT ROLL serves as the resilient layer within the flooring system, in combination with polyurethane resins.
Documented Applications
Indoors and outdoors
In all applications, ECO-SPORT ROLL serves as the elastic layer within the flooring system, in combination with polyurethane resins.

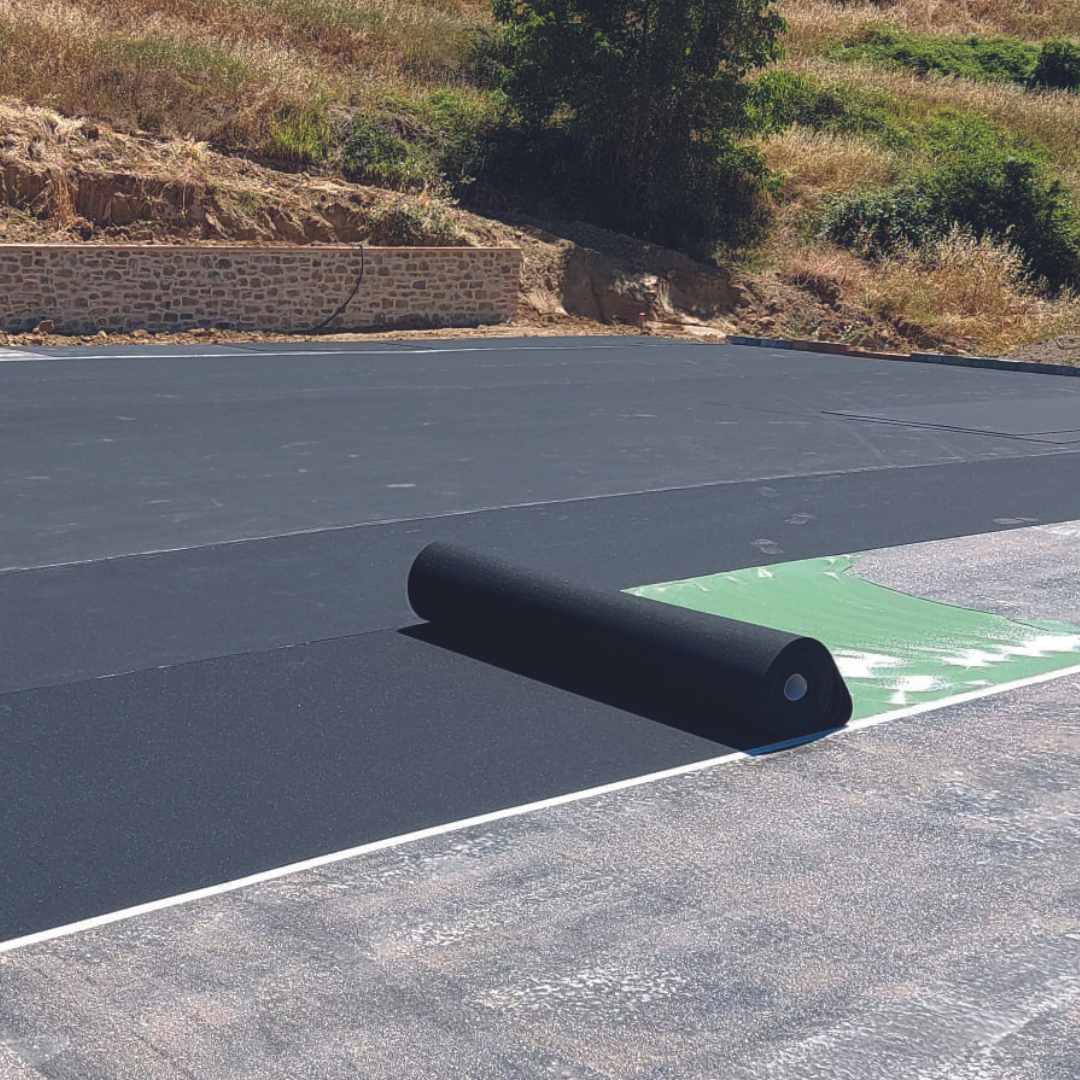

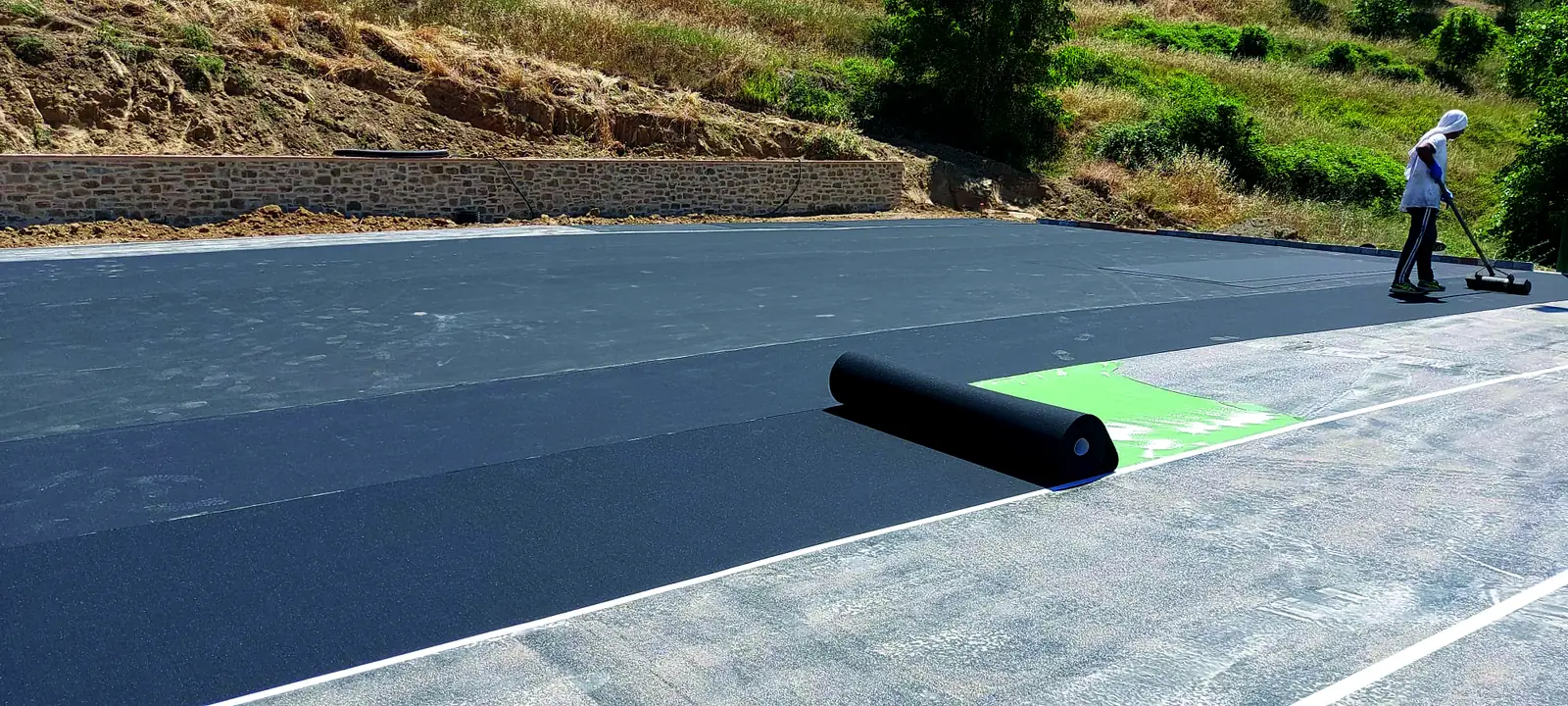

Track and Field Tracks
Elastic underlayment for flooring systems intended for indoor and outdoor track and field facilities.

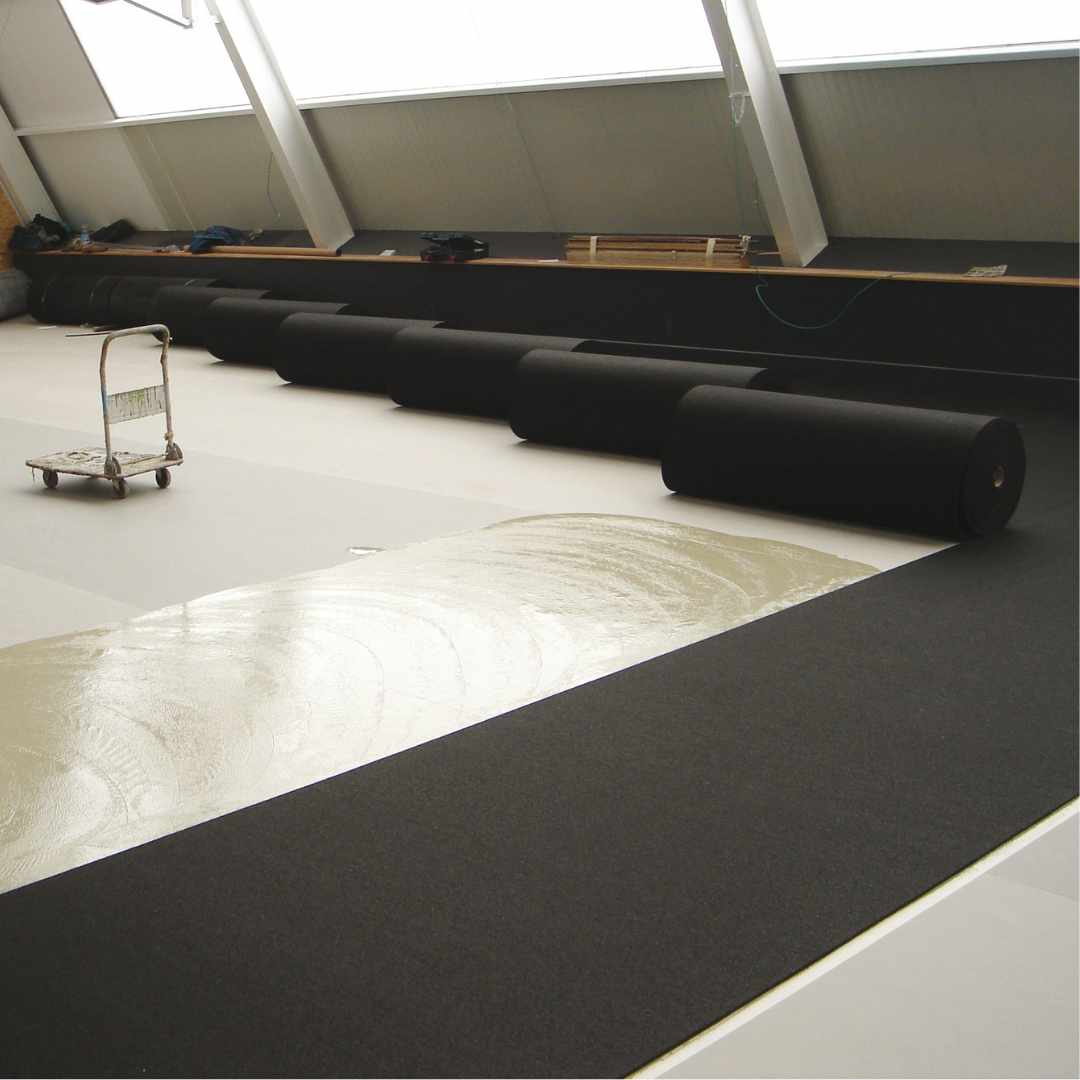

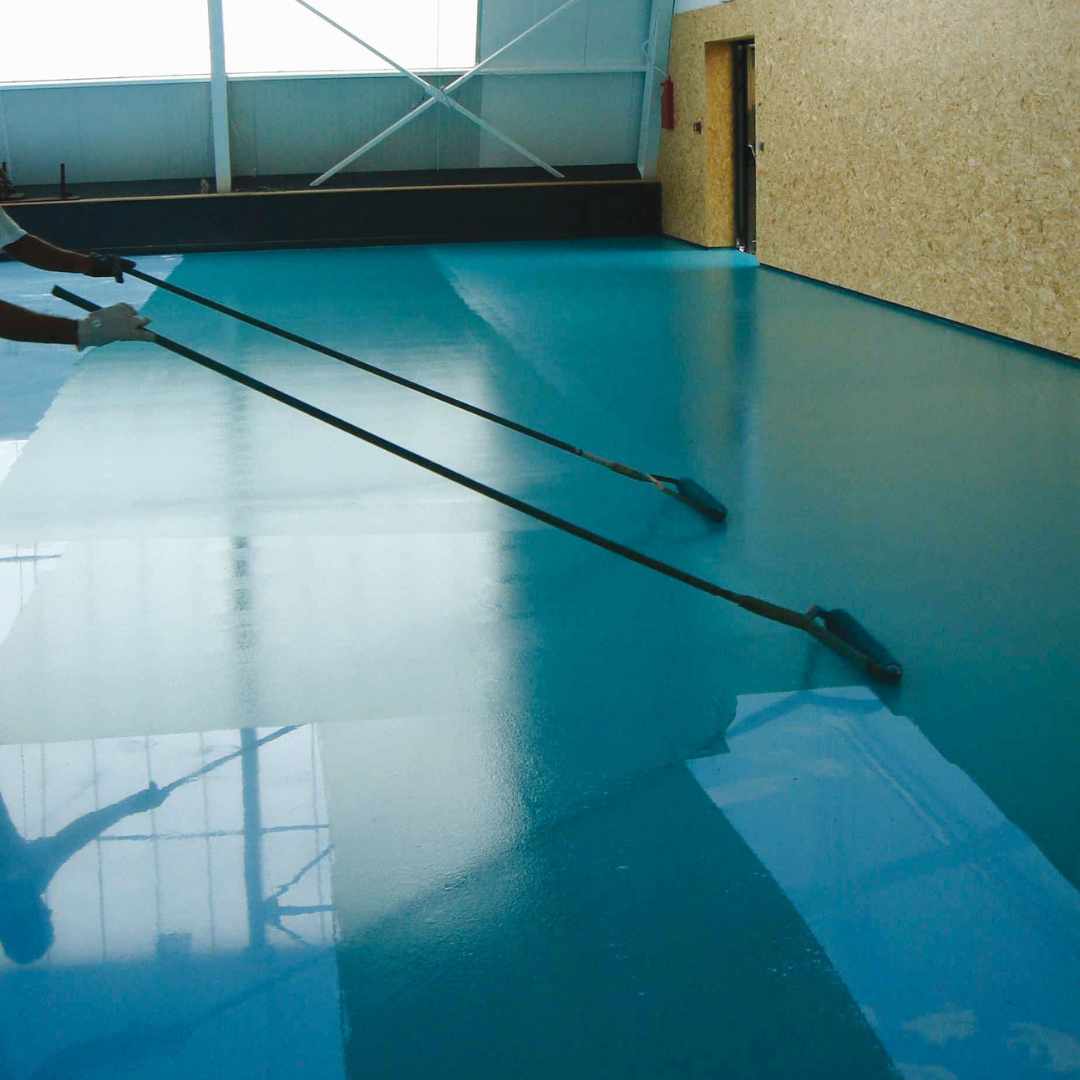

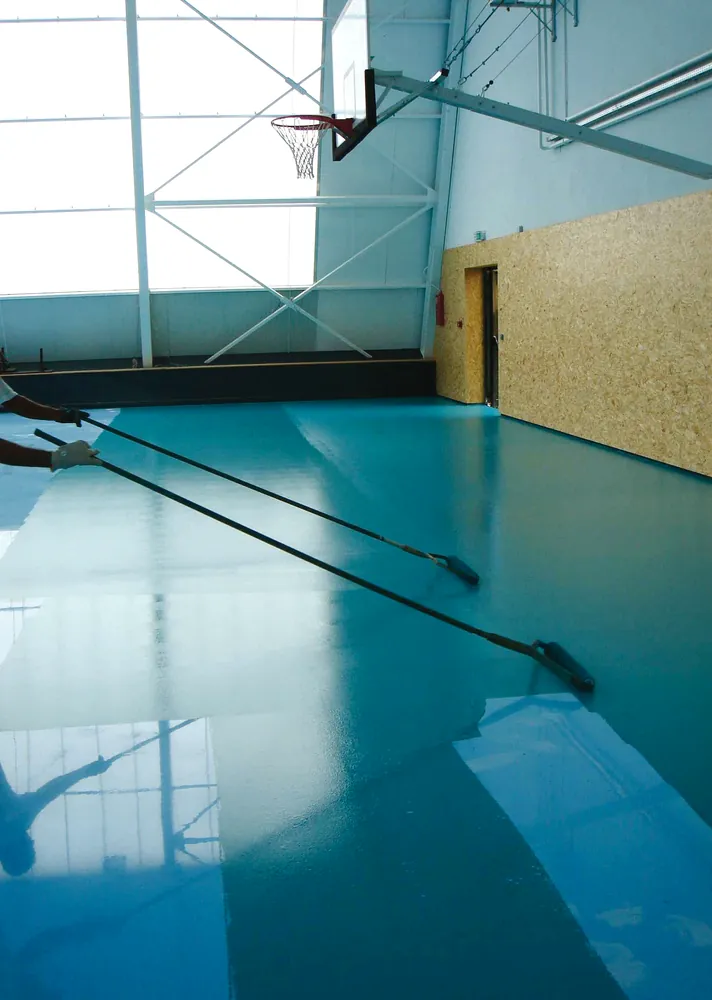

Indoor Sports Flooring
Proven use in gyms, sports arenas, and fitness centers, in combination with polyurethane resins.
03 / Dimensions and Configurations
Rolls are available in thicknesses ranging from 2 to 10 mm
The roll width is 1,500 mm. The length and available surface area vary depending on the selected thickness.
| Data | 2 mm | 3 mm | 4 mm | 5 mm | 6 mm | 7 mm | 8 mm | 9 mm | 10 mm |
|---|---|---|---|---|---|---|---|---|---|
| Roll Length | 40 m | 30 m | 22 m | 18 m | 15 m | 13 m | 11 m | 10 m | 9 m |
| Area per roll | 60 m² | 45 m² | 33 m² | 27 m² | 22.5 m² | 19.5 m² | 16.5 m² | 15 m² | 13.5 m² |
04 / System and Performance
Multi-layer system and documented performance
ECO-SPORT ROLL is the system’s elastic base layer. The documented layer sequence includes ECO-SPORT ROLL, a pore-filler, polyurethane, and a topcoat.
1. ECO-SPORT ROLL
Elastic base layer made of recycled rubber.
2. Pore filler
The next layer expected in the documented stratigraphy.
3. Polyurethane
Polyurethane layer of the multilayer system.
4. Finishing
Finish coat for sports surfaces.
EN 14877:2013
The documented compliance pertains to ECO-SPORT ROLL, which is used as the base layer of the ECO-SPORT TRACK sandwich system, made with Conica® polyurethane resins and EPDM granules.
REMADE® on request
At the time of ordering, we can supply ECO-SPORT ROLL with REMADE® certification upon request. The certification attests to the traceability of the materials and a recycled content of 92%, with the documentation required under the Minimum Environmental Criteria (CAM). The melange versions with EPDM are not covered by this certification.
05 / Colors
Standard black and melange versions available upon request
The documented standard color for ECO-SPORT ROLL is black. The marketing materials also indicate that melange versions with EPDM are available upon request, without specifying a color palette or blend ratios for this product.
Standard Black
For any melange versions, availability and configuration must be confirmed before placing an order.
06 / Installation
Integration into the multilayer system

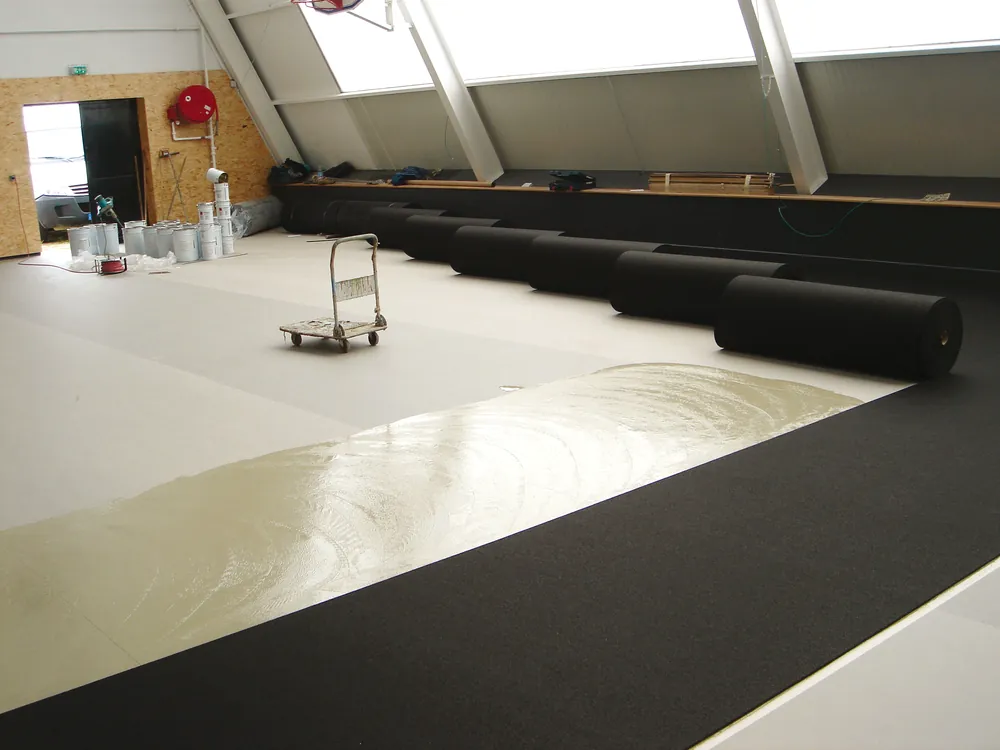

ECO-SPORT ROLL is used as the base layer for sports flooring. The configuration shown in the catalog includes the roll, a pore-filling layer, the subsequent polyurethane coating, and the surface finish.
Base Layer
ECO-SPORT ROLL is used as an elastic subfloor for sports flooring.
Next Cycle
The documented configuration includes pore filler, a polyurethane layer, and a surface finish.
Data to be determined
The installation procedure must be determined based on the specific project and the planned flooring system; mix ratios, adhesives, and curing times are not listed on this page.
07 / FAQ
ECO-SPORT ROLL Technical FAQ
Concise answers regarding the product’s function, dimensions, applications, and documentation.
What is ECO-SPORT ROLL used for?
It is an elastic underlay made of recycled rubber designed for use in sports flooring systems, particularly track and field tracks and indoor and outdoor sports surfaces.
What thicknesses are available?
It is available in thicknesses ranging from 2 to 10 mm. The width is 1,500 mm, while the length and surface area of the roll vary depending on the thickness.
Can it be used both indoors and outdoors?
Yes. Sources document its use on track and field tracks, in gyms, and at other sports facilities, both indoor and outdoor.
Does ECO-SPORT ROLL comply with EN 14877:2013?
The documented compliance applies to ECO-SPORT ROLL used as the base layer of the ECO-SPORT TRACK sandwich system, tested with Conica® polyurethane resins and EPDM granules.
Is it available with REMADE® certification?
Yes, it can be requested at the time of ordering. The certification documents a recycled content of 92%; the melange versions with EPDM are excluded from this certification.
B2B Request
Request a technical or commercial evaluation for ECO-SPORT ROLL
Please contact us to determine the most suitable configuration for your project, as well as availability, technical documentation, and terms of delivery.
For a faster quote, please specify the surface area, intended use, whether it’s for indoor or outdoor use, the required thickness, and any necessary documents.
